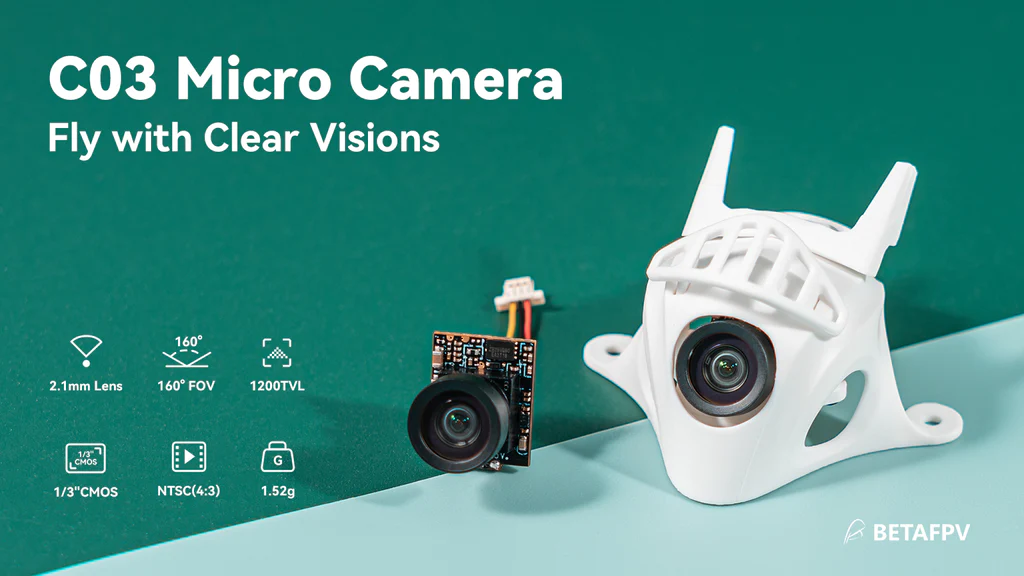

[:en]C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, comes with a 1.52g lightweight, 1/3” CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency. Recommend using C03 FPV Micro Camera with BETAFPV Micro Canopy.

Bullet Points

• Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
• Miniature, and lightweight design, weighing only 1.52g. Completely match with M03 5.8G VTX on micro whoop drone.
• 1200TVL resolution and 1/3″ CMOS sensor ensure a high-quality and clear image
• Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
• 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specification

• Item: C03 FPV Micro Camera
• Image Sensor: 1/3″ CMOS Sensor
• Horizontal: 1200TVL with Global WDR
• Signal System: NTSC (4:3)
• Lens : 2.1mm(M7) FOV 160°
• S/N Ratio: >50db
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: 0.01Lux@1.2F
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 100mA@5V / 120mA@3.3V
• Housing Material: ABS

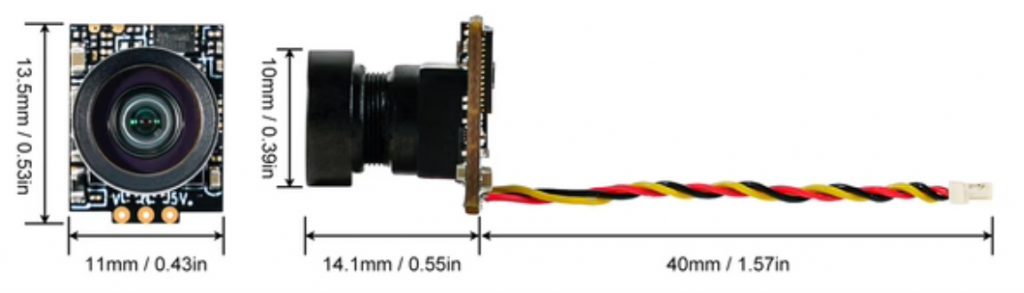

• Dimension: 11*14.1*13.5mm
• Net weight: 1.52g

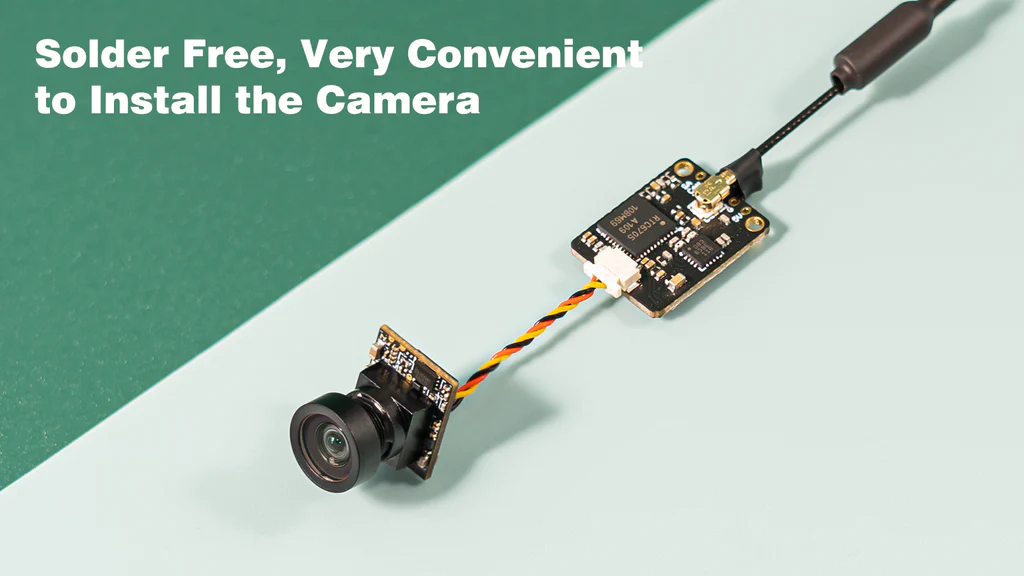

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

• Canopy: BETAFPV Canopy for Micro Camera 2022
• VTX: BETAFPV M03 5.8G VTX
• FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
• Drones: Meteor65/75 drones, or other micro whoop drones in the market.

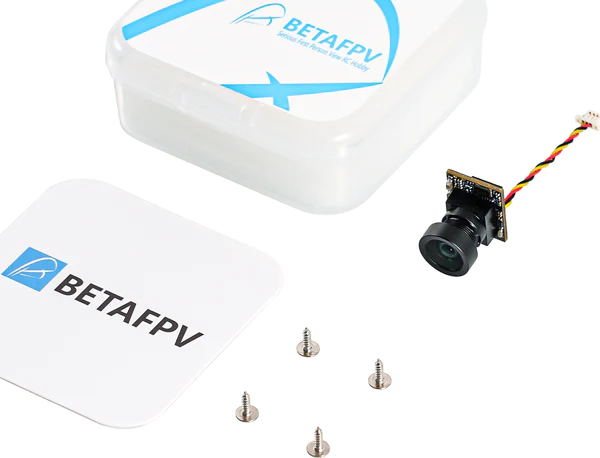

Package

• 1 * C03 FPV Micro Camera
• 4 * M1.4*5 Screws

[:]
